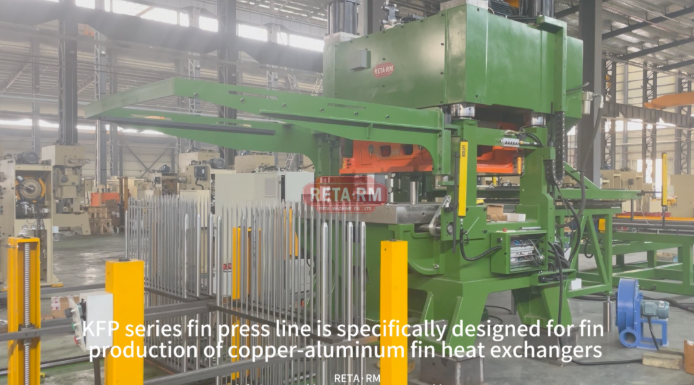

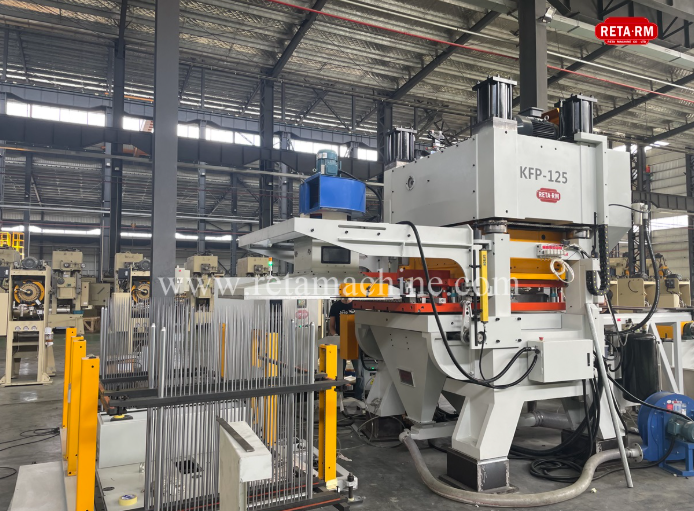

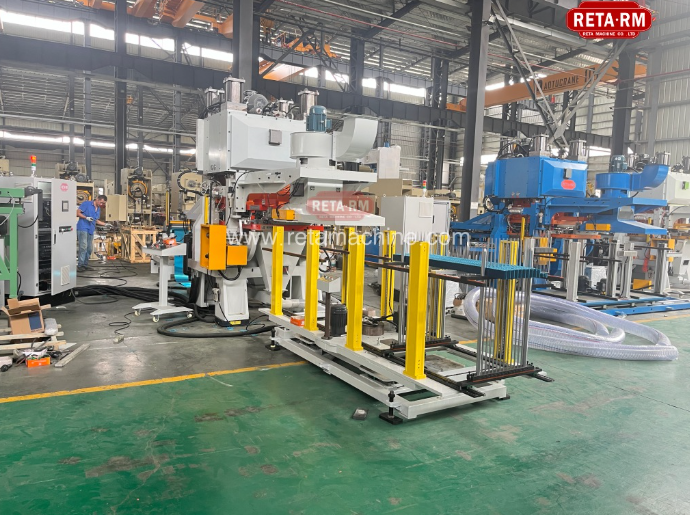

Main performance features of KFP(GC) series:

●Composition:Aluminum foil uncoulde mechanism.oil tank,initial feeding equipment(option),closed high-speed precision press,suker collector,electric control system,pneumatic control system,hydraulic control,quick change die device,high and reliable technology with Patent 1P/2P/3P/4P changing system;
●The slide has hydro-lifting function which will be convenient for dies installation/commissioning;
●Power press speed & vacuum sucker is controlled by inverter;

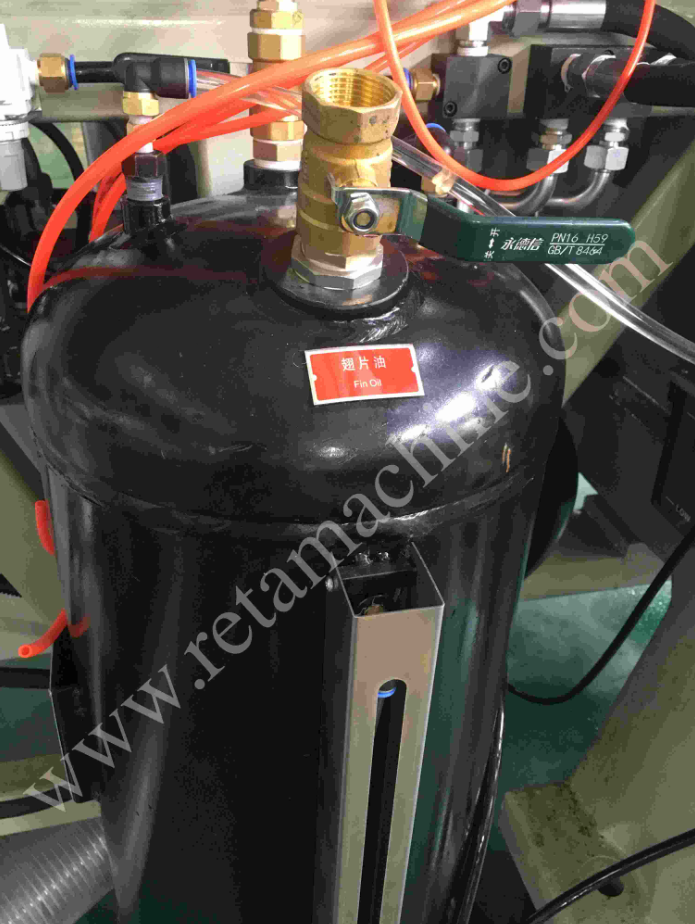

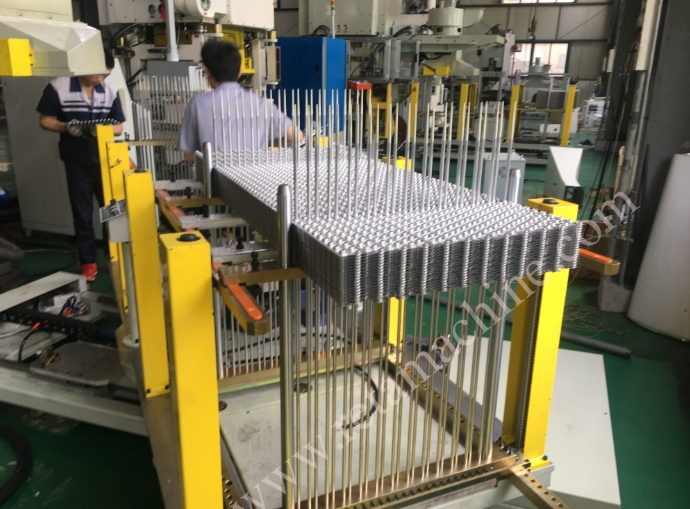

●Collector has protecting system for fault operation,material shortage warming,oil shortage warming;
●Hydraulic overload protection for main machine;
●Equipped with hydraulic rapid-dies changing device,making dies change more quickly and convenient;

●Touch screen and PLC electrical control system ensuring the reliable of the automatic stamping.

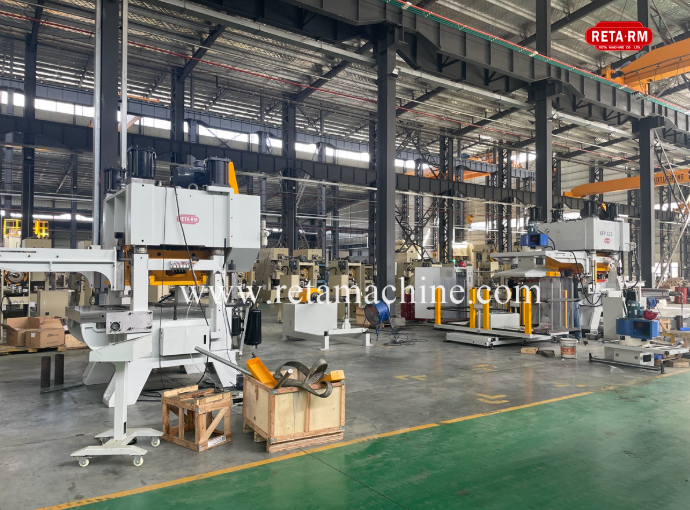

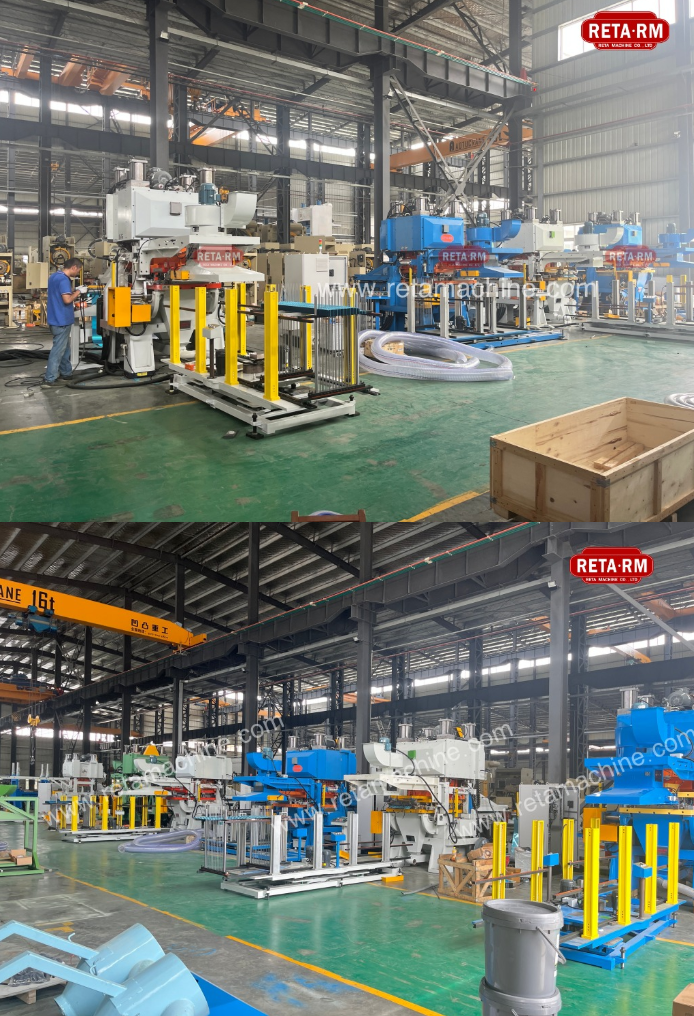

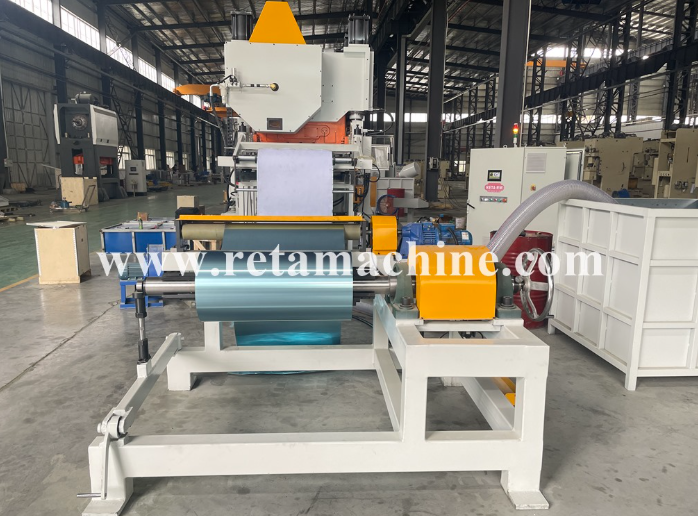

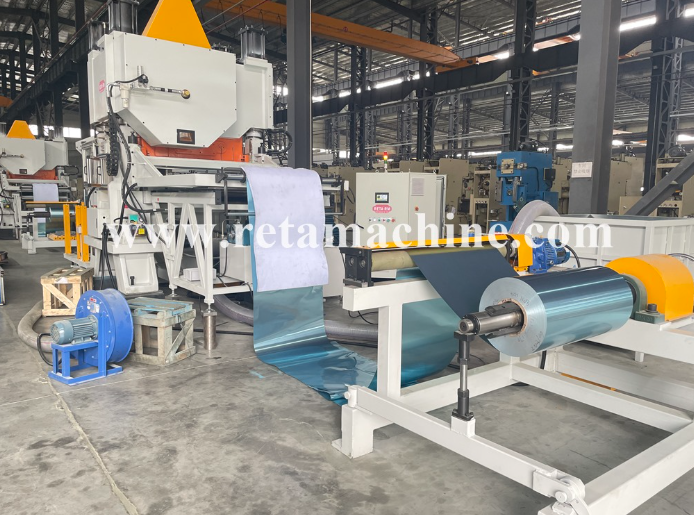

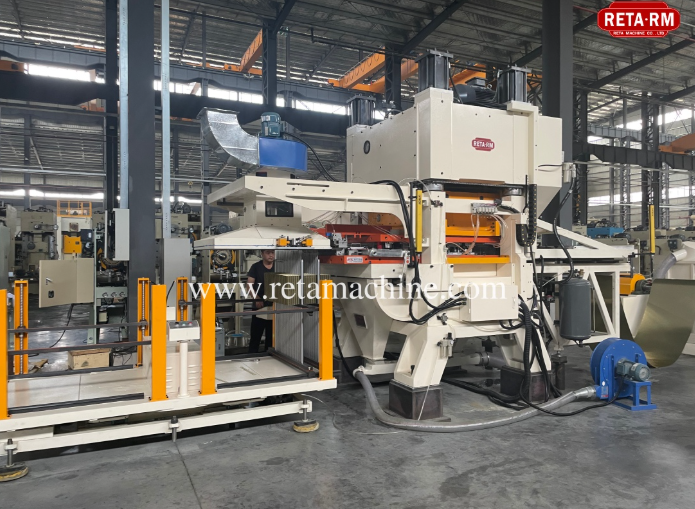

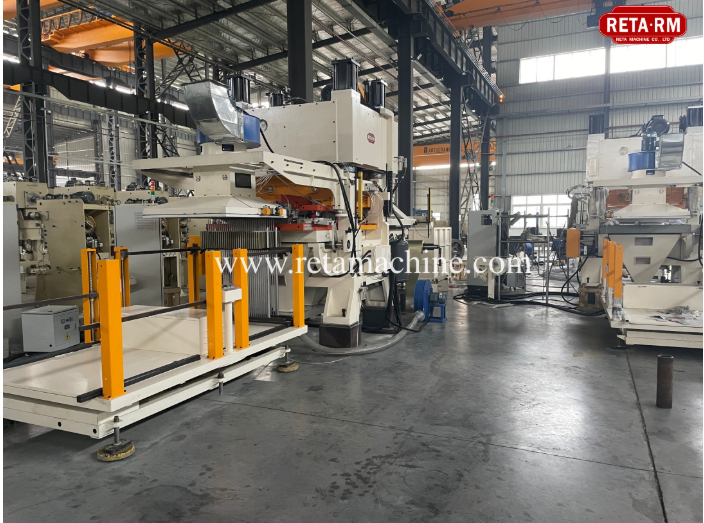

Workshop

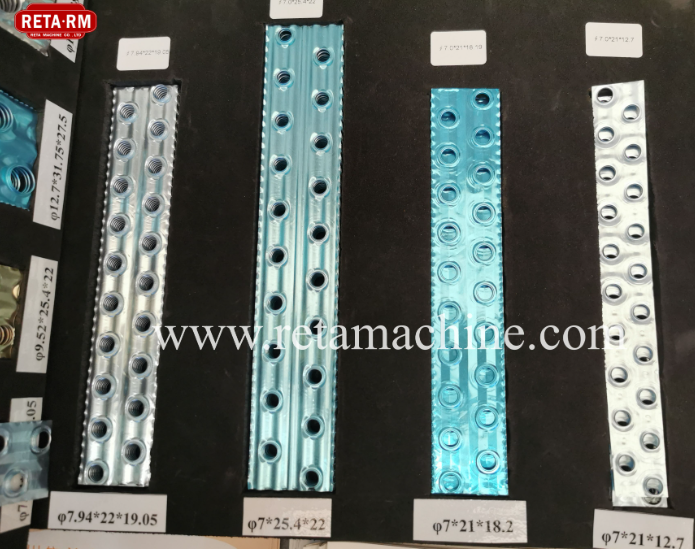

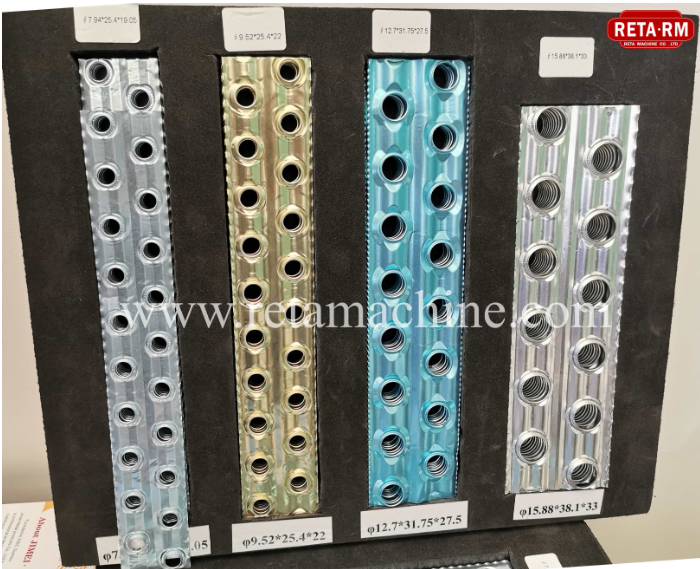

Aluminum / Copper Foil

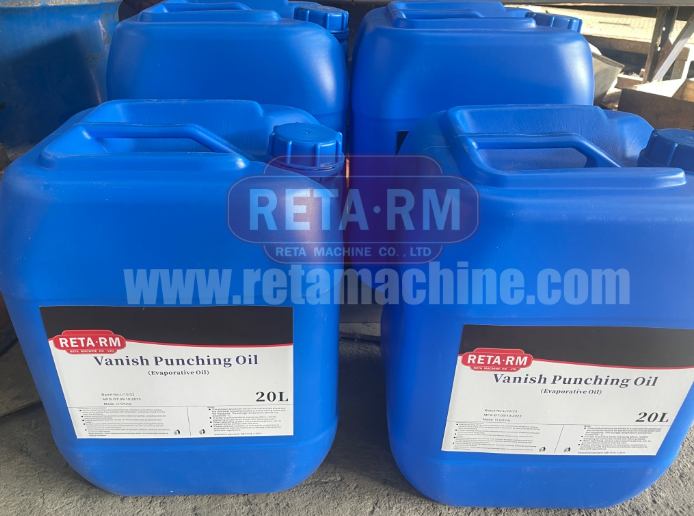

Fin stamping lubrication oil (20L packing)

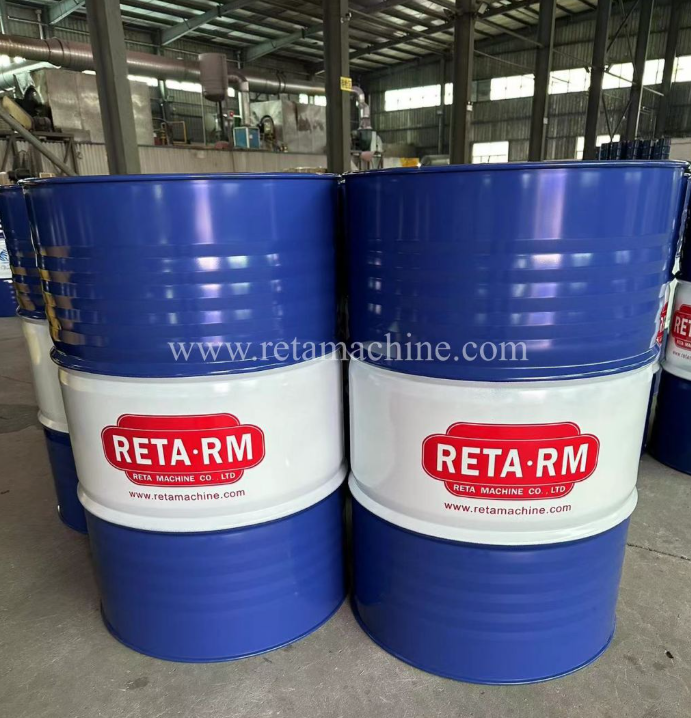

Fin stamping lubrication oil (200L packing)

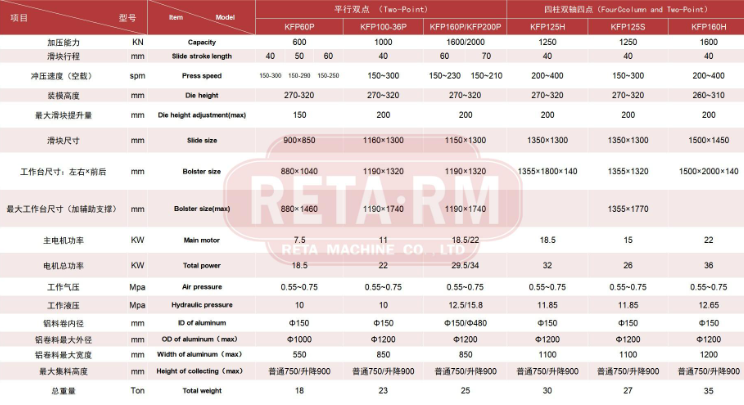

PARAMETER：

Note: Die height can be customized,dopending on the specific cumstances.
