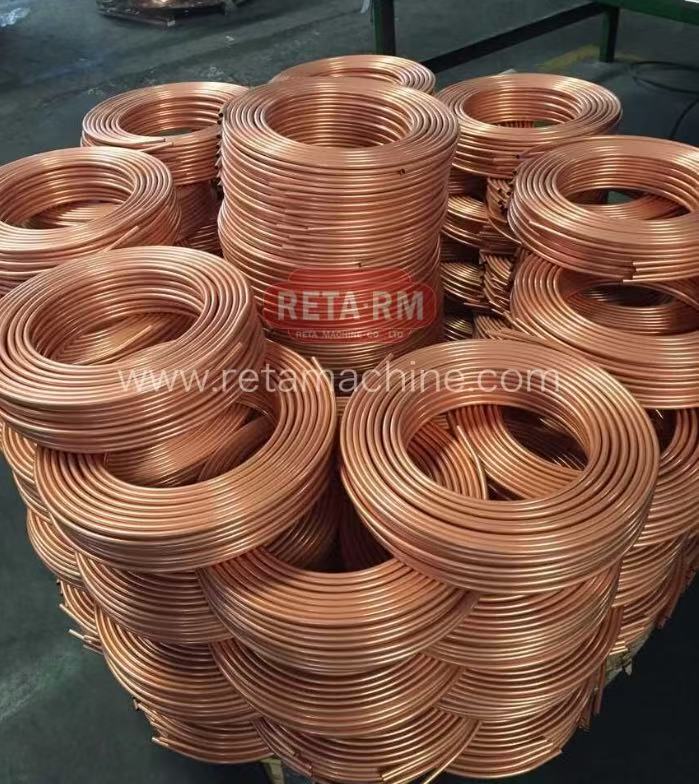

Professional Pancake Copper Coil making Machine to produce flat pancake copper coils. Suitable for copper tube coil forming with consistent coil size, save labor for refrigeration coil manufacturing.

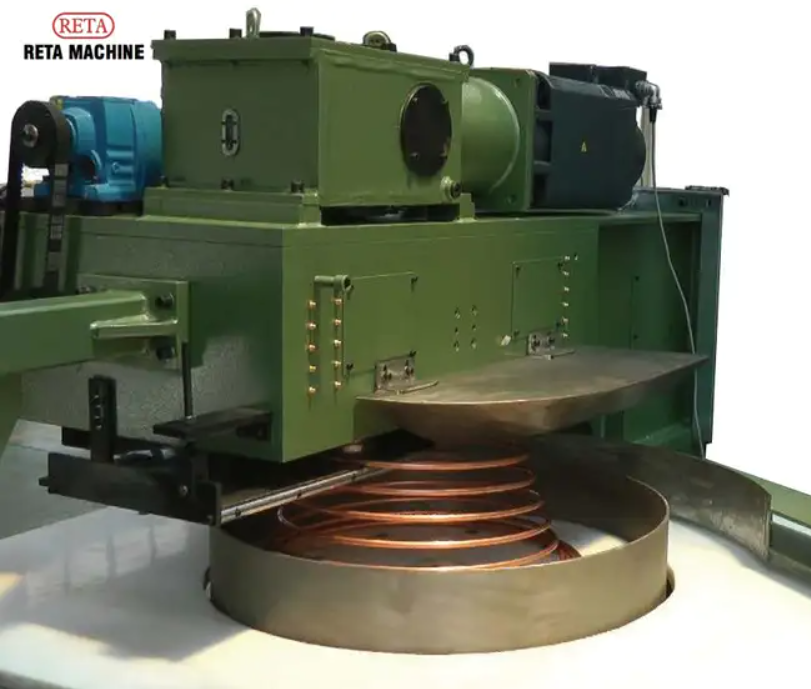

Pancake Coil Copper Tube Making Machine
These machines are dedicated to producing straight length and pancake coils. The raw material for this process is normally 1200kg coils finished on the spinner blocks or LWC copper coil.
When equipped with a flying saw, the machine can continuously make straight length or pancake coils at 120m/min speed.
FEATURES
◆ Compact design
◆ Less maintenance
◆ Easy to switch sizes
◆ High automation
ITEM | DATA |
OD Range (mm) | 4~23 |
Minimum Length (mm) | 2200 |
Tolerance of Length (mm) | +/-2 |
Max Speed (m/min) | 120 |
Max Pancake Coil OD (mm) | 1000 |
Minimum Pancake Coil ID (mm) | 210 |
