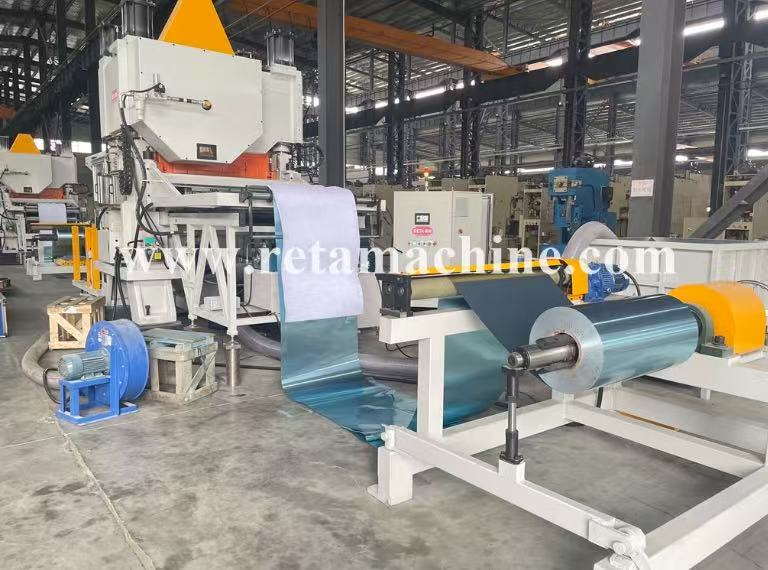

How to quickly Change Aluminum Foil Material

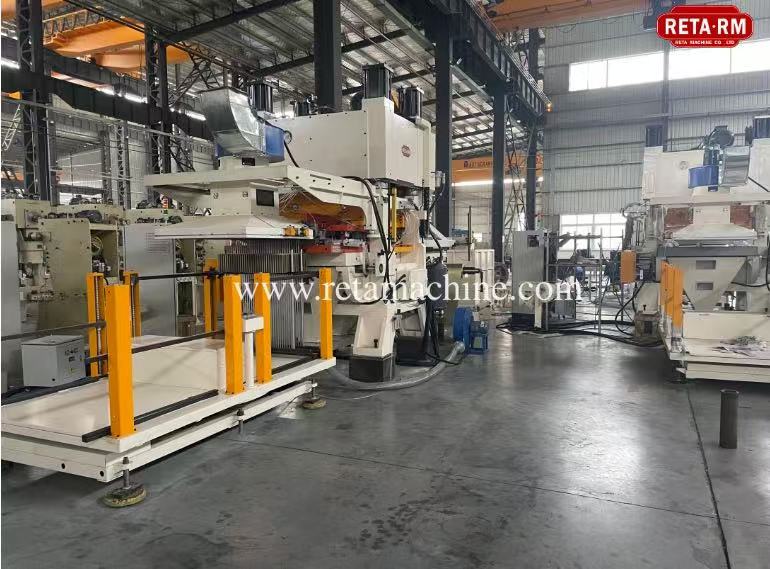

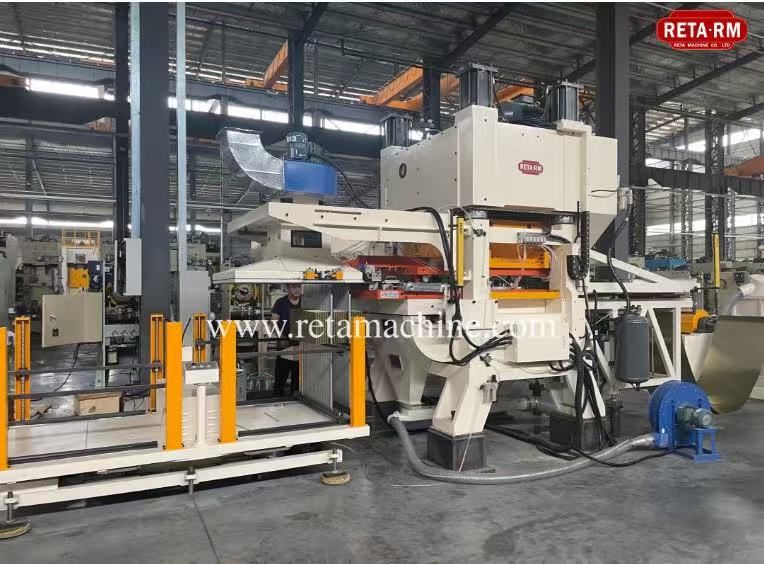

C TYPE FIN PRESS LINE PARAMETER:

Item		Specification
Model		CFP-45B			CFP-45C
Capacity	KN	450			450
Pressure Stroke	mm	1.6
Slide-Strokes	mm	40	50	60	40	50	60
Max.Stroke Per Minute	S.P.M	200	180	160	250	200	180
Min.Stroke Per Minute	S.P.M	120
Die Height	mm	Max270
Die Height Adjustment	mm	60
Deep Throat	mm	290		330		350
Bottom Size of Slide(LR×FB)	mm	400×300		530×340		530×340
Table Size(LR×FB)	mm	850×580		850×660		850×700
Thickness of Table	mm	80
Main Motor	KW	5.5
Width of Material	mm	≤330(Customizable)
Stack Length	mm	1200/1500/2000
Collecting Height of Material	mm	630 (Customizable）
Coil ID	mm	φ75/φ150
Coil OD	mm	φ850
Overall Size (L×W×H)	mm	640020002700
Weight	kg	4800

Item		Specification
Model		CFP-65			CFP-85	CFP-110
Nominal Pressure	KN	650			850	1100
Nominal Pressure Stroke	mm	2				3
Slide-Stroke	mm	40	50	60	40
Max. Stroke Per Minute	S.P.M	200	180	160	160
Min. Stroke Per Minute	S.P.M	120				80
Die Height	mm	290			300
Die Height Adjustment	mm	75			80
Deep Throat	mm	290	330	350	350
Bottom Size of Slide(LR×FB)	mm	500×360	590×400	590×400	600×420
Table Size(LR×FB)	mm	890×580	890×660	890×700	1000×700	1150×700
Thickness of Table	mm	80			90	110
Main Motor	KW	7.5				11
Width of Material	mm	≤330(Customizable）			≤410(Customizable）
Sucking Length	mm	1200/1500/2000
Collecting Height of Material	mm	650(Customizable）
Coil ID	mm	φ75/φ150
Coil OD	mm	φ850
Overall Size(L×W×H)	mm	6500×2000×2800			6700×2000×3000	6800×2000×3300
Weight	kg	6600			7500	10600
