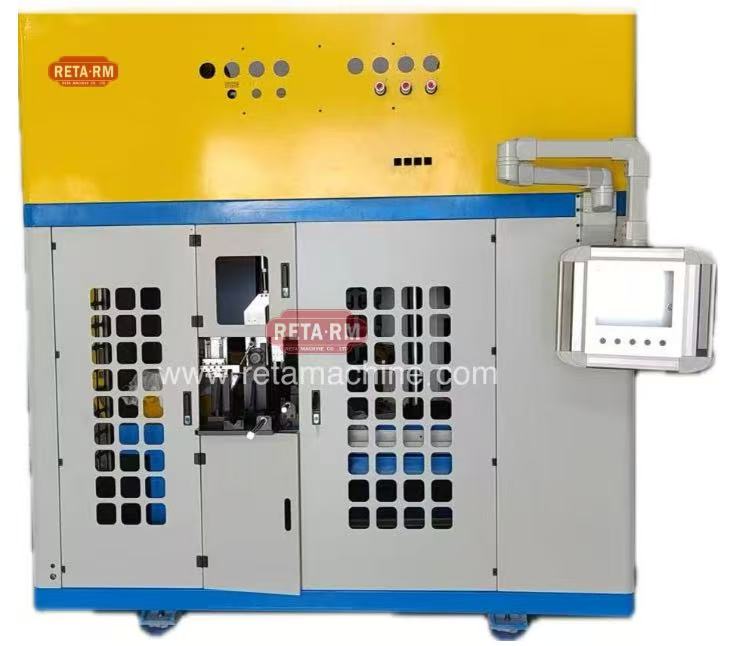

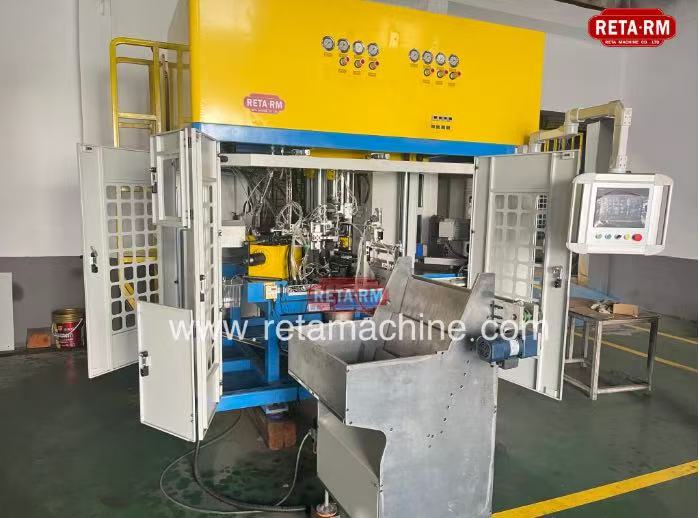

90D,45D Copper Elbow Making Machine

1. Machine Main Process Action

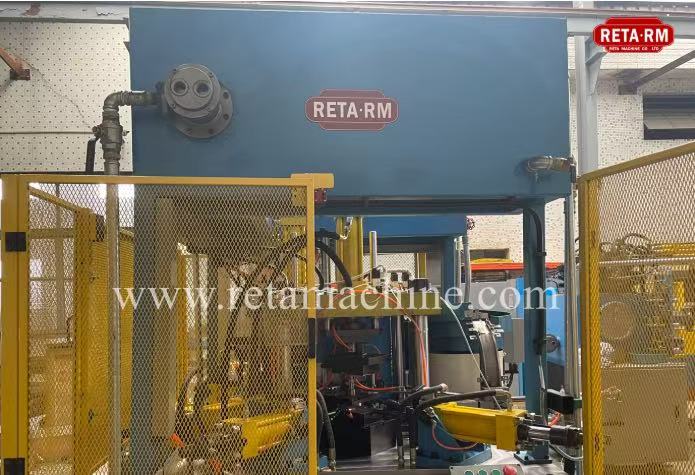

1): Hydraulic press action: inching, automatic two ways.
2):Among them: inching: operate the corresponding function button to complete the corresponding action. Press the button once to complete the inching of the corresponding action, and the release action stops. It is mainly used for equipment adjustment and mold replacement.
3):Full automatic: when rotating the button to automatic operation, press the automatic operation button to automatically cycle the equipment.

2. Automatic operation：

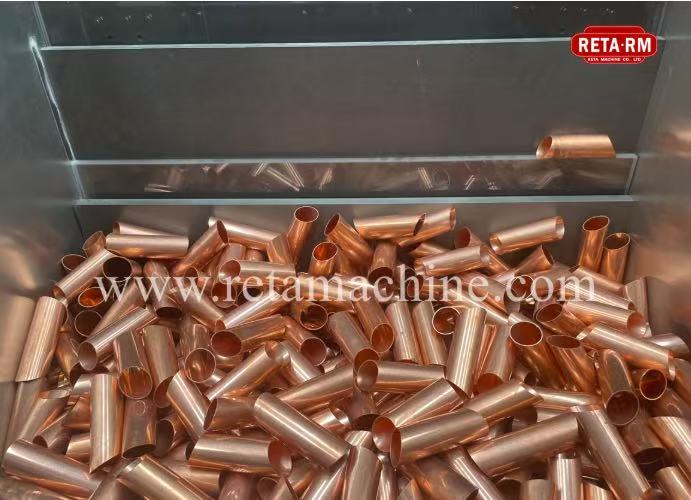

1.Start the feeding system to ensure that there are enough workpieces and orderly arranged successively.
2、After closing the power switch and pressing the "oil pump start" button, the operator can press the button on the electric box according to the production needs, and then the text function of the key can be realized. When the selector switch "auto / inching" is turned to the "auto" mode and the "auto" button is pressed at the same time, the machine can realize the following functions: the vibrating disk starts the feeding trough the feeding mold advances the rotary table goes down to the position absorbs the workpiece the rotary table goes up to the position the feeding mold returns to the original point the rotary disc rotates 90 ° - the rotary table descends, the suction cup looses, the rotary table goes up, the rotary table rotates 45 ° - the master cylinder enters the pressure maintaining side cylinder In place - side cylinder back in place - master cylinder back in place - turntable rotates counterclockwise 45 ° in place - rotary table downward sucks workpiece - Turntable rises - turntable rotates 90 ° and puts workpiece into mold cavity - circulation operation
