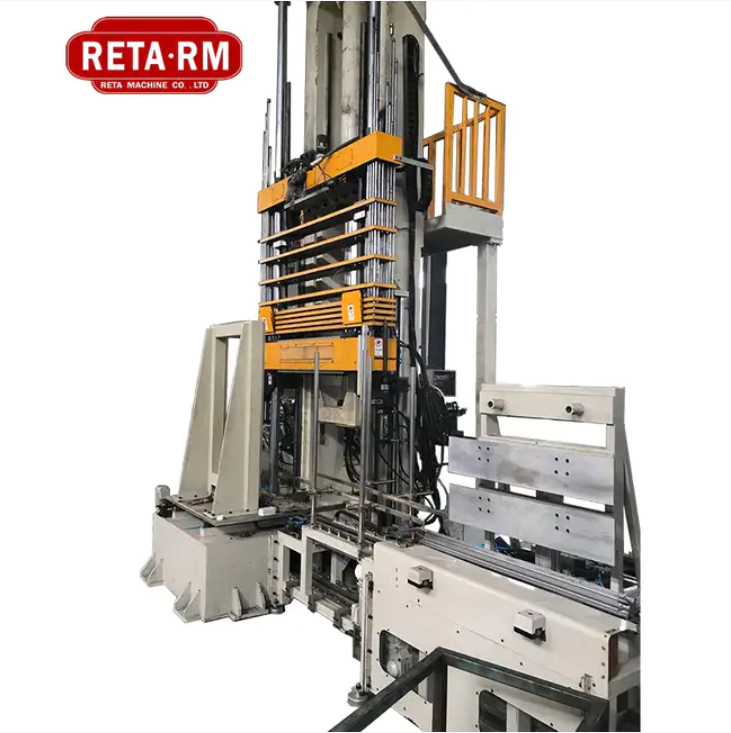

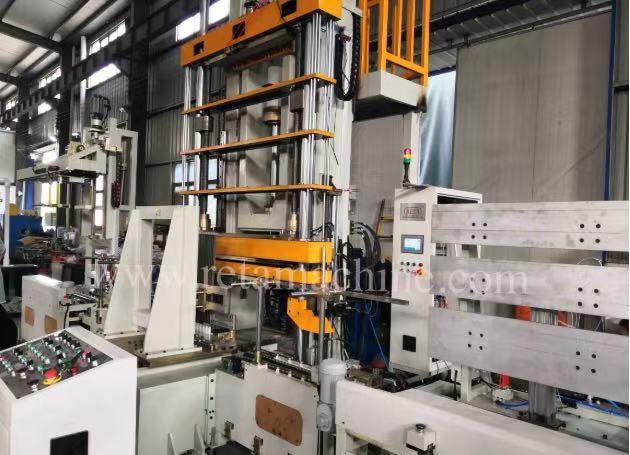

（1）Structural form: The machine adopts vertical layout, manual feeding, automatically conveys the product to the expanding pipe station, automatically moves the product out of the expanding pipe to the unloading station after the completion of the expanding pipe, and completes the process of feeding, expanding pipe, expanding, flanging, moving, rotating and unloading in one clamp.
（2）Expanding station: The movement of expanding position in and out is controlled by servo motor reducer.
  (3)  Product movement: The automatic double-speed chain conveyor is adopted. This structure is used for the entry, removal and movement of the work station of the product.
  (4) Product unloading: The height and position of unloading are controlled by servo motor, and the product is automatically conveyed to the conveyor belt of vertical degreasing furnace by the left and right clamping mechanism of cylinder.
  (5) Servo motor and touch screen are used to set and control the positioning height and expanding position of expanding pipe.
  (6) Adjust the height of the workpiece by rotating the screw mounted on both sides of the fuselage
  (7) The cylinder is used to press the workpiece, so that the operator can quickly up and down the workpiece.
  (8) Fuselage door panel adopts fast disassembly mode, saving time.
（9）Electric control system of equipment has interlocking function to prevent misoperation.

Looking for ideal Vertical Expander Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Vertical Expander are quality guaranteed. We are leading manufacturer of Hairpin Bender Machine in China.  If you have any question, please feel free to contact us.
